If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Motherboard Asus 90MB1KP0-M0EAY0 at an unbeatable price.

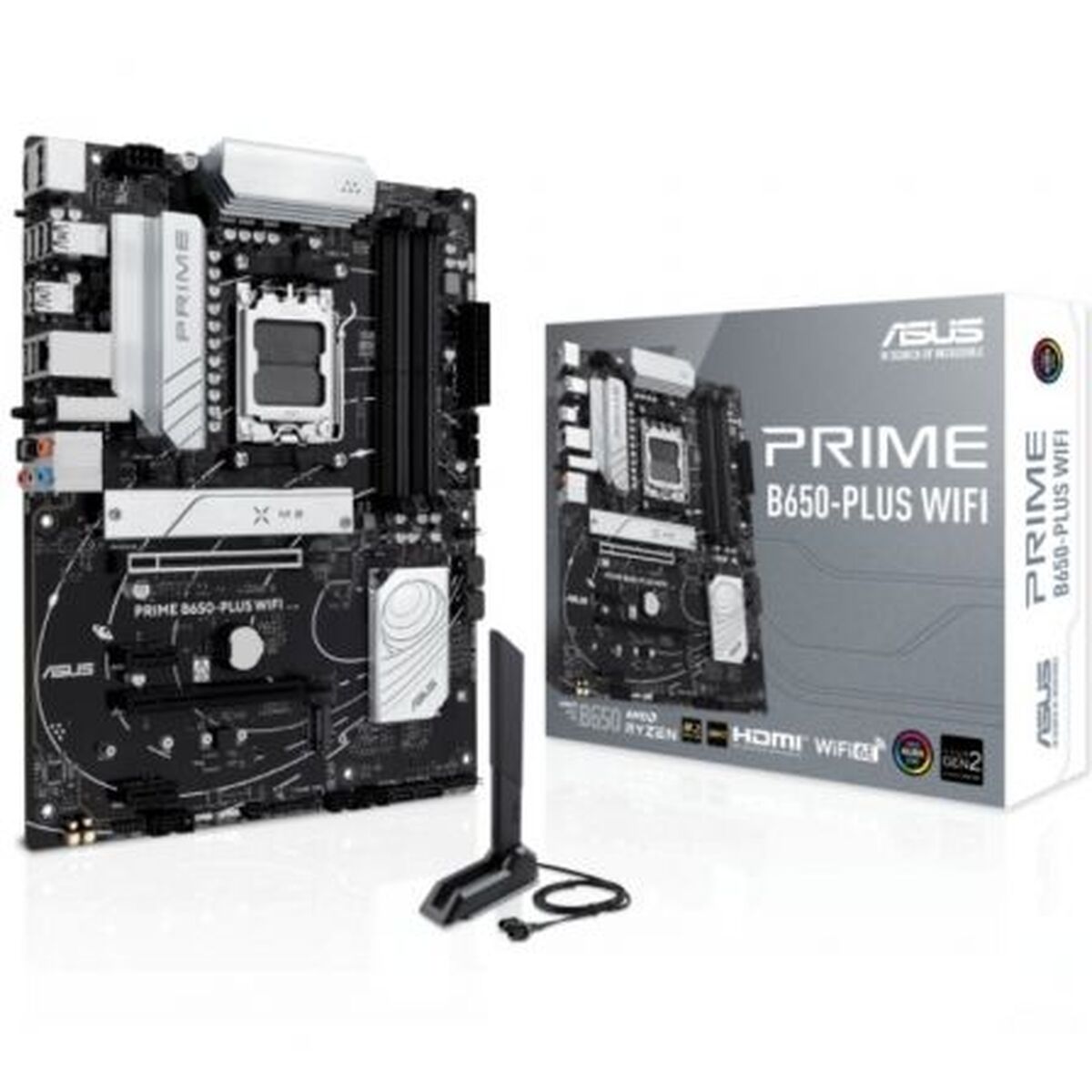

The Asus 90MB1KP0-M0EAY0 motherboard is an ATX Motherboard designed to support the latest AMD platform, compatible with AMD Ryzen desktop processors from the 9000, 8000, and 7000 series via the AMD AM5 socket and the AMD B650 chipset. It supports high-speed DDR5 memory, with up to 128 GB across 4 DIMM slots, covering frequencies from 4800 MHz up to 7600(OC) MHz, including AMD EXPO profiles for easier overclocking. This motherboard features dual-channel memory architecture and OptiMem II technology to maximize stability and performance. For expansion, it offers multiple PCIe slots, including a main PCIe 4.0 x16 slot supporting x16/x8/x4 modes depending on the CPU, plus PCIe x1 slots for additional cards, ensuring flexibility for various uses and setups. The integrated graphics section includes DisplayPort 1.4 (up to 8K@60Hz) and HDMI 2.1 (4K@60Hz) ports, guaranteeing compatibility with high-resolution displays.

Connectivity is completed with a robust rear panel featuring multiple USB ports, including USB 3.2 Gen 2x2 Type-C for ultra-fast transfer, USB 3.2 Gen 2 and USB 2.0 ports, as well as a wireless module with Wi-Fi 6 2x2 and Bluetooth 5.2. The board also includes a 2.5 Gb Realtek Ethernet port for high-speed wired connections. Storage capacity is notable, supporting three M.2 slots (compatible with PCIe 5.0 and 4.0 modes) and up to four 6 Gb/s SATA ports, allowing advanced RAID configurations compatible with AMD RAIDXpert2 technology. Power and cooling are covered with dedicated connectors for CPU, AIO pump, chassis fans, and optimizations that ensure stable and efficient power delivery.

Additionally, the motherboard excels in audio with a Realtek 7.1 high-definition codec, offering surround sound and multiple jack detection and reassignment options, along with quality audio components to reduce interference. Other features include ASUS Aura RGB lighting systems, advanced fan controls, and functions like BIOS FlashBack for safe and easy updates. The motherboard is compatible with Windows 10 64-bit and Windows 11, ensuring support for the latest software and drivers. In summary, this Asus motherboard combines modern, robust technologies for users seeking reliable support, high performance, and broad connectivity on current AMD platforms.

• Type:
  • Motherboard
  • ATX
  • UEFI
• Connections:
  • HDMI
  • HDMI x 1
  • 2 x USB 2.0
  • Ethernet LAN
  • SATA x 4
  • M.2 x 2
  • Thunderbolt x 1
  • USB-C 3.2 x 1
  • DIMM
  • DisplayPort x 1
  • RJ45 x 1
• Processor: AMD
• Chipset:
  • AMD B650
  • AMD
• Characteristics:
  • USB
  • Memory
• Form factor: ATX
• Connectivity:
  • Bluetooth
  • Wi-Fi
  • Wi-Fi 6 GHz
  • Bluetooth 5.3
• Interface: Gigabit Ethernet
• Memory: 256 MB
• Number of memory slots: 4
• Ports: 1
• Speakers: 7.1
• Compatible:
  • HDD/SSD
  • PC
• Includes:
  • Screws
  • SATA
• Width: 30,5 cm
• Socket: AMD AM5
• Memory Type: DDR5
• Processor Family: AMD
