If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Motherboard Gigabyte 9MZ79EGLX-00-10 LGA 1700 at an unbeatable price.

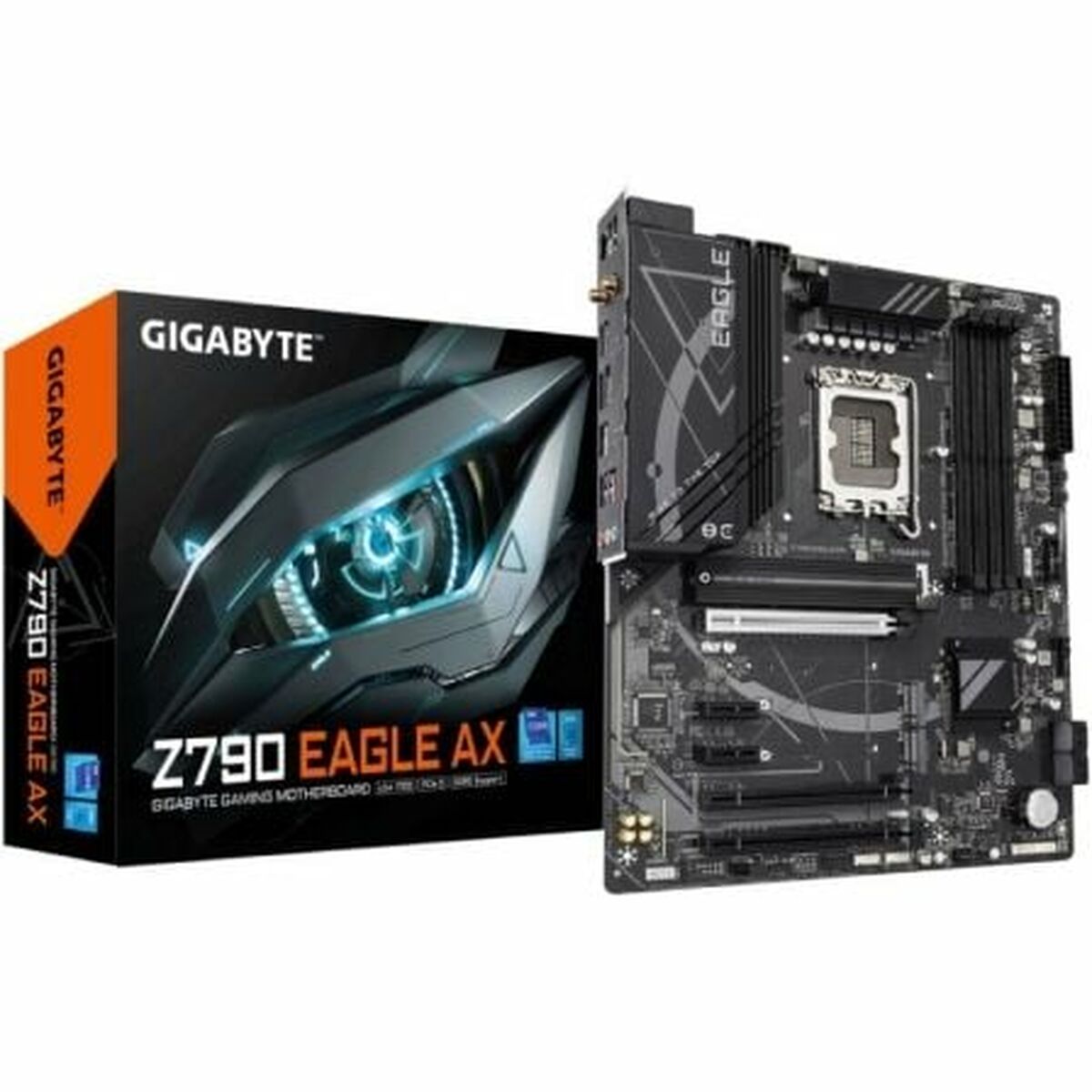

The Gigabyte Z790 EAGLE AX Motherboard is an advanced solution designed for desktop systems seeking high performance and maximum compatibility with the latest Intel processors. Compatible with LGA 1700 sockets, it supports a wide range of Intel CPUs, from Intel® Celeron® models to Intel® Core™ i3, i5, i7, and i9 series, as well as Intel® Pentium® Gold, ensuring great flexibility for both basic and high-performance setups. Built in ATX form factor, it features the Intel Z790 Express chipset, which fully exploits DDR5-SDRAM memory capabilities, supporting up to 192 GB of RAM across four dual-channel DIMM slots, capable of running at frequencies from 4400 MHz up to 7600 MHz, enhancing speed and stability in demanding tasks.

For storage, this motherboard supports both traditional SATA III drives and modern M.2 technology, allowing connection of up to 7 drives (4 of them HDD or SATA SSD), with RAID support at levels 0, 1, 5, and 10, enabling advanced configurations for performance or data security. Its integrated graphics system supports a maximum resolution of 4096 x 2304 pixels, with HDMI 2.1 and DisplayPort 1.2 output ports, plus support for discrete graphics cards, ensuring compatibility with external monitors and GPUs. For expansion, it includes multiple PCI Express slots, including one PCIe X16 Gen 5 and another Gen 4, as well as PCIe X1 Gen 3 slots, expanding options for adding components like sound cards, capture cards, or network adapters.

In terms of connectivity, the Z790 EAGLE AX incorporates essential modern technologies: USB Type-A and Type-C connectors in various versions (USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2), two Thunderbolt headers, plus high-speed 2.5 Gigabit Ethernet and Wi-Fi 6E with the Intel AX211 chipset, ensuring fast and stable wireless connections along with Bluetooth 5.3 support for modern peripherals. For audio, it integrates a Realtek ALC897 chip with 7.1 channel output, ports for microphone, headphones, and S/PDIF, suitable for complete multimedia experiences. Regarding hardware management and cooling, it offers fan connections, RGB LED strip headers, and sensors for comprehensive monitoring of fans, temperatures, and voltages, even compatible with liquid cooling systems.

The motherboard is equipped with a 256 MB AMI UEFI BIOS, with SMBIOS and DMI 2.7 versions, security features such as a jumper and button to clear CMOS, and certifications supporting current 64-bit Windows 10 and Windows 11 operating systems. Its robust design and advanced functions are complemented by included accessories like SATA cables, Wi-Fi antennas, a CR2032 battery, and Norton Internet Security software (OEM version), all within a product made in China and backed by a three-year warranty.

In summary, the Gigabyte Z790 EAGLE AX is a versatile, high-performance motherboard ideal for building powerful PCs that require broad Intel processor compatibility, support for ultra-fast DDR5 memory, modern connectivity solutions, and a complete expansion and storage system, designed for demanding users seeking stability and upgrade potential.

• Chipset: Intel Z790 Express
• Type:
  • Motherboard
  • PCI Express 3.0
  • ATX
  • UEFI
• Characteristics:
  • USB
  • Memory
• Form factor: ATX
• Colour: Brown
• Connectivity:
  • Bluetooth
  • Wi-Fi
  • Wi-Fi 6 GHz
  • Bluetooth 5.3
  • Wi-Fi 6E ghz
• Interface: Gigabit Ethernet
• Battery: CR2032
• Memory: 256 MB
• Number of memory slots: 4
• Batteries included: Yes
• Speakers: 7.1
• Connections:
  • HDMI x 1
  • 2 x USB 2.0
  • Microphone
  • Ethernet LAN
  • SATA x 4
  • PS/2 x 1
  • DIMM x 4
  • M.2 x 3
  • Thunderbolt x 2
  • HDMI 2.1 x 1
  • DIMM
  • 4 x USB 3.2 Gen 1 (3.1 Gen 1)
  • USB-A - USB-C
  • DisplayPort x 1
  • USB 3.2 x 1
  • RJ45 x 1
• Compatible:
  • HDD/SSD
  • PC
• Connectors: SATA x 4
• Width: 30,5 cm
• Includes: SATA
• Resolution: 4096 x 2304 px
• Sound: Realtek ALC897
• Power supply: ATX
• Socket: LGA 1700
• Memory Type: DDR5
• Processor Family: Intel
